As Ortaş A.Ş. we offer you Concrete Aggregates with 4 different product options.
You can find the properties of these four different products in the following tabs.

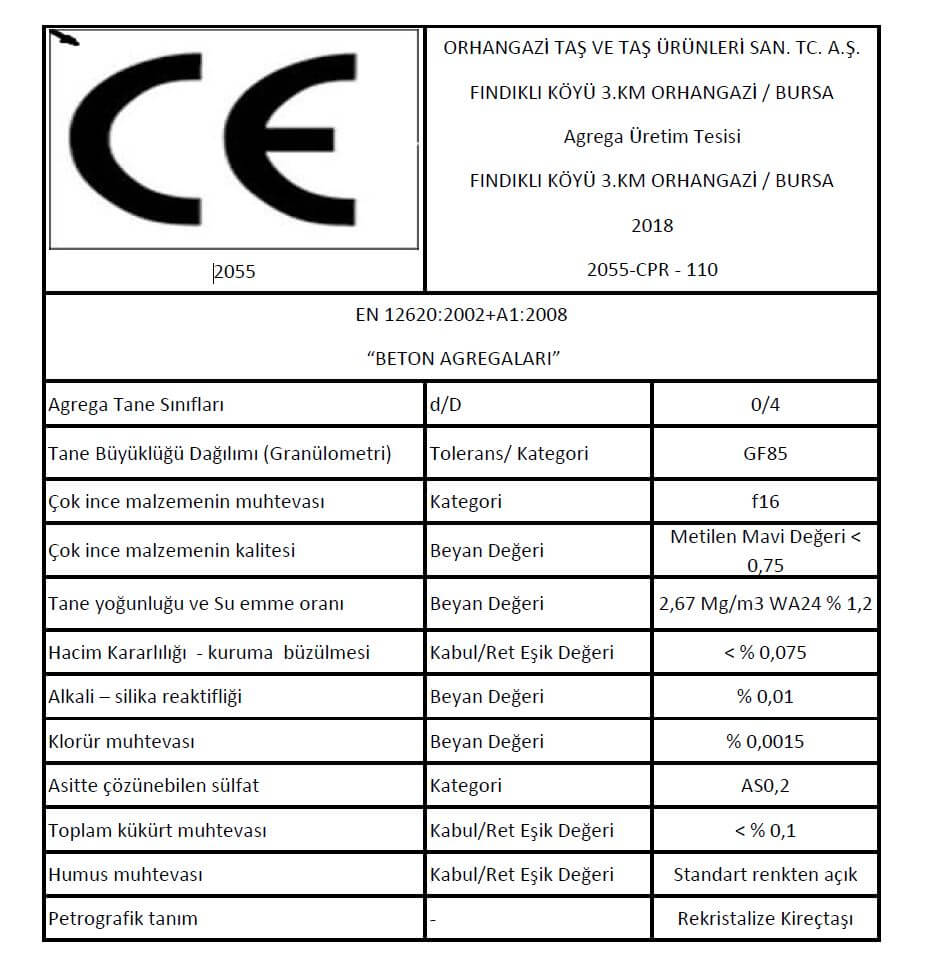

| AGGREGATE PROPERTIES (0 - 5) |
- | - |
|---|---|---|
| Agregate Particle Classes | d / D | 0 / 4 |
| Particle Size Distribution (Granulometry) | Tolerance / Category | GF85 |
| Content of Highly Fine Material | Category | f16 |
| Quality of Highly Fine Material | Declared Value | Methylene Blue Value < 0.75 |
| Particle Density and Water Absorption Rate | Declared Value | 2.67 mg / m3 WA24 % 1.2 |
| Volume Stability - Drying Shrinkage | Acceptance / Rejection Threshold Value | < % 0.075 |
| Alkaline - Silica Reactivity | Declared Value | % 0.01 |
| Chloride Content | Declared Value | % 0.0015 |
| Acid-Soluble Sulphate | Category | AS0.2 |
| Total Sulphur Content | Acceptance / Rejection Threshold Value | < % 0.1 |
| Humus Content | Acceptance / Rejection Threshold Value | Lighter than Standard Color |
| Petrographic Definition | - | Recrystallized Calcite |
0 - 5 Click On The Image Below For The Product Information.

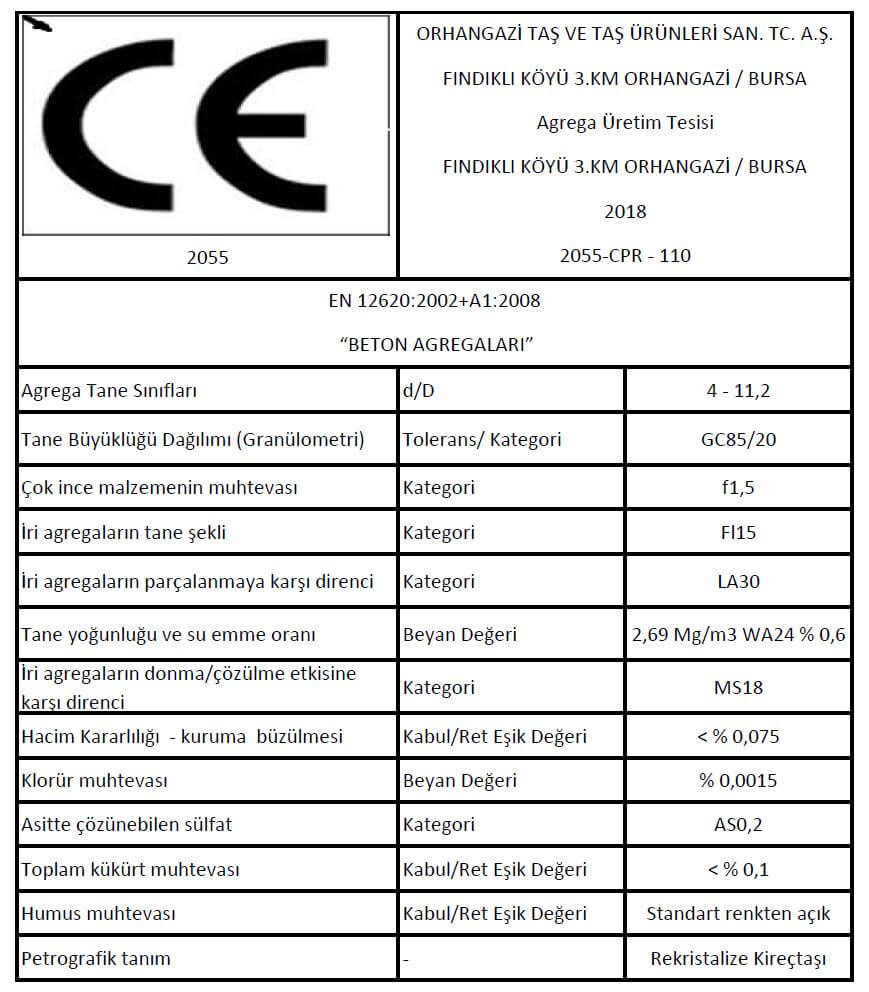

| AGGREGATE PROPERTIES (5 - 12) |
- | - |
|---|---|---|
| Agregate Particle Classes | d / D | 4 / 11.2 |
| Particle Size Distribution (Granulometry) | Tolerance / Category | GC85 / 20 |
| Content of Highly Fine Material | Category | f1.5 |
| Grain Shape of Coarse Aggregates | Category | Fl15 |
| Resistance of Coarse Aggregates Against Fragmentation | Category | LA30 |
| Particle Density and Water Absorption Rate | Declared Value | 2.69 mg / m3 WA24 % 0.6 |
| Resistance of Coarse Aggregates Against Freezing / Thawing Effect | Category | MS18 |
| Volume Stability - Drying Shrinkage | Acceptance / Rejection Threshold Value | < % 0.075 |
| Chloride Content | Declared Value | % 0.0015 |
| Acid-Soluble Sulphate | Category | AS0.2 |
| Total Sulphur Content | Acceptance / Rejection Threshold Value | < % 0.1 |
| Humus Content | Acceptance / Rejection Threshold Value | Lighter than Standard Color |
| Petrographic Definition | - | Recrystallized Calcite |
5 - 12 Click On The Image Below For The Product Information.

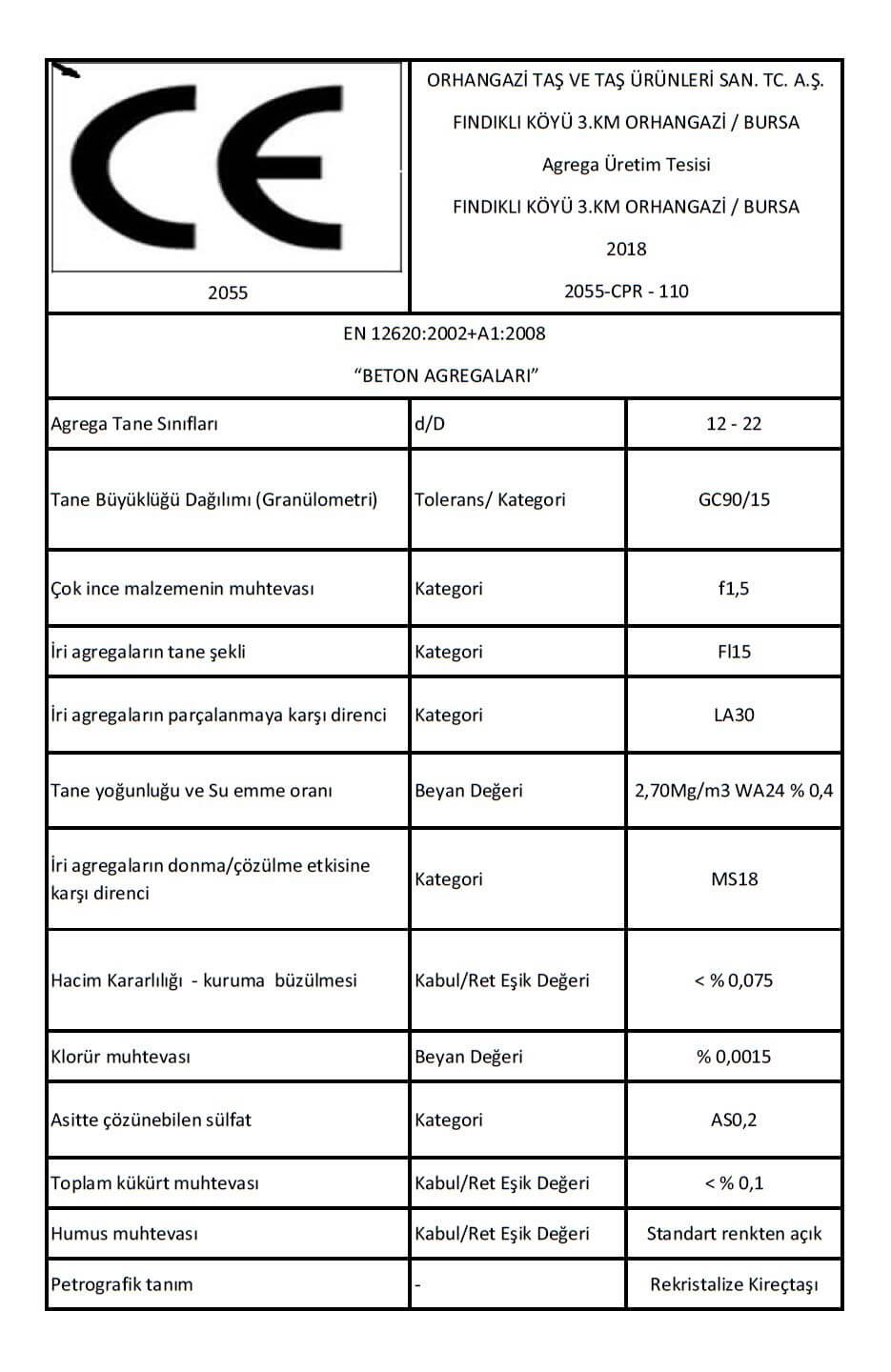

| AGGREGATE PROPERTIES (12 - 22) |
- | - |
|---|---|---|
| Agregate Particle Classes | d / D | 12 / 22 |
| Particle Size Distribution (Granulometry) | Tolerance / Category | GC90 / 15 |
| Content of Highly Fine Material | Category | f1.5 |
| Grain Shape of Coarse Aggregates | Category | Fl15 |
| Resistance of Coarse Aggregates Against Fragmentation | Category | LA30 |
| Particle Density and Water Absorption Rate | Declared Value | 2.70 mg / m3 WA24 % 0.4 |
| Resistance of Coarse Aggregates Against Freezing / Thawing Effect | Category | MS18 |
| Volume Stability - Drying Shrinkage | Acceptance / Rejection Threshold Value | < % 0.075 |
| Chloride Content | Declared Value | % 0.0015 |
| Acid-Soluble Sulphate | Category | AS0.2 |
| Total Sulphur Content | Acceptance / Rejection Threshold Value | < % 0.1 |
| Humus Content | Acceptance / Rejection Threshold Value | Lighter than Standard Color |
| Petrographic Definition | - | Recrystallized Calcite |
12 - 22 Click On The Image Below For The Product Information.

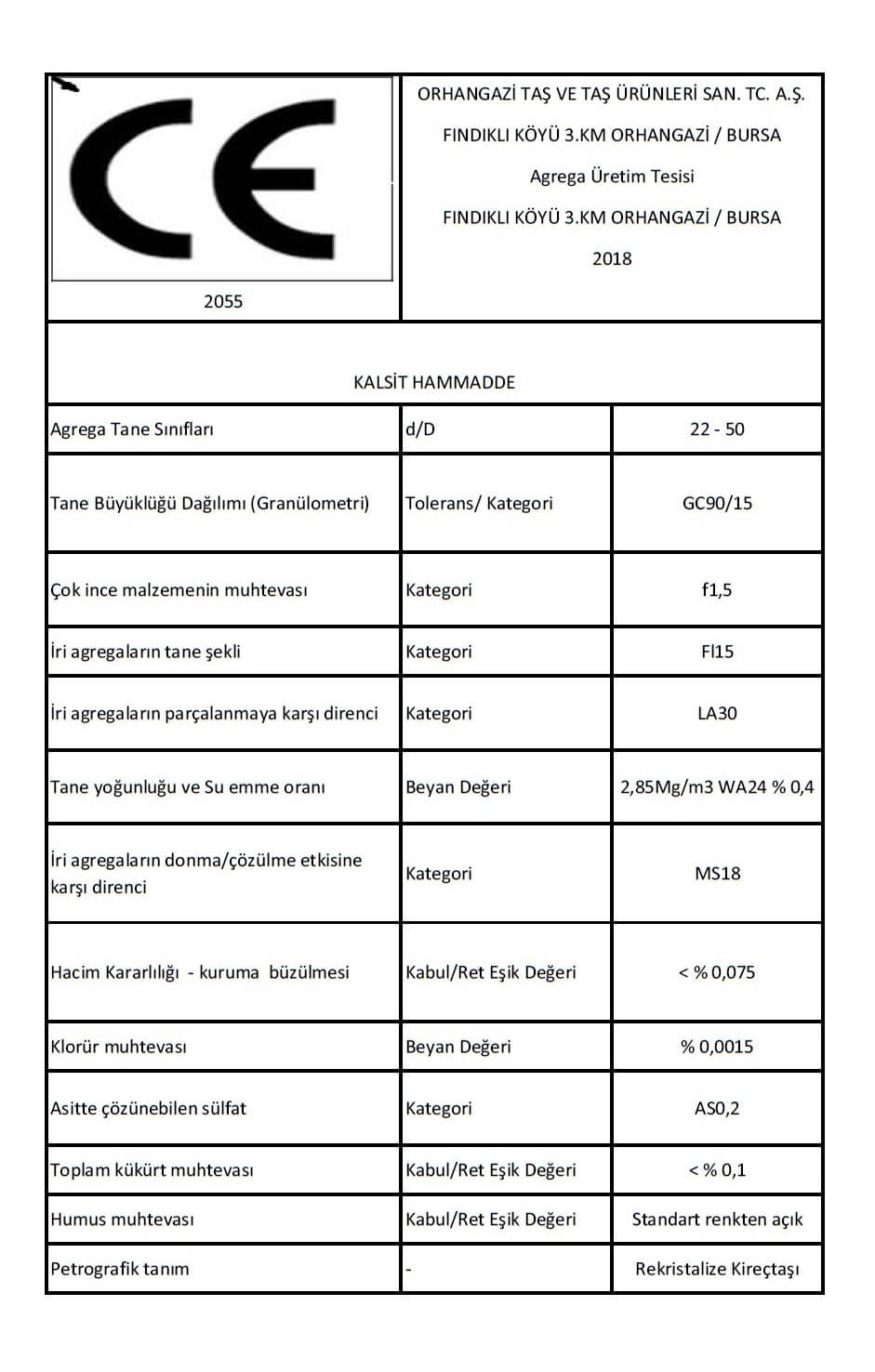

| AGGREGATE PROPERTIES (22 - 50) |
- | - |
|---|---|---|
| Agregate Particle Classes | d / D | 22 / 50 |
| Particle Size Distribution (Granulometry) | Tolerance / Category | GC90 / 15 |
| Content of Highly Fine Material | Category | f1.5 |
| Grain Shape of Coarse Aggregates | Category | Fl15 |
| Resistance of Coarse Aggregates Against Fragmentation | Category | LA30 |
| Particle Density and Water Absorption Rate | Declared Value | 2.85 mg / m3 WA24 % 0.4 |
| Resistance of Coarse Aggregates Against Freezing / Thawing Effect | Category | MS18 |
| Volume Stability - Drying Shrinkage | Acceptance / Rejection Threshold Value | < % 0.075 |
| Chloride Content | Declared Value | % 0.0015 |
| Acid-Soluble Sulphate | Category | AS0.2 |
| Total Sulphur Content | Acceptance / Rejection Threshold Value | < % 0.1 |
| Humus Content | Acceptance / Rejection Threshold Value | Lighter than Standard Color |
| Petrographic Definition | - | Recrystallized Calcite |
22 - 50 Click On The Image Below For The Product Information.
